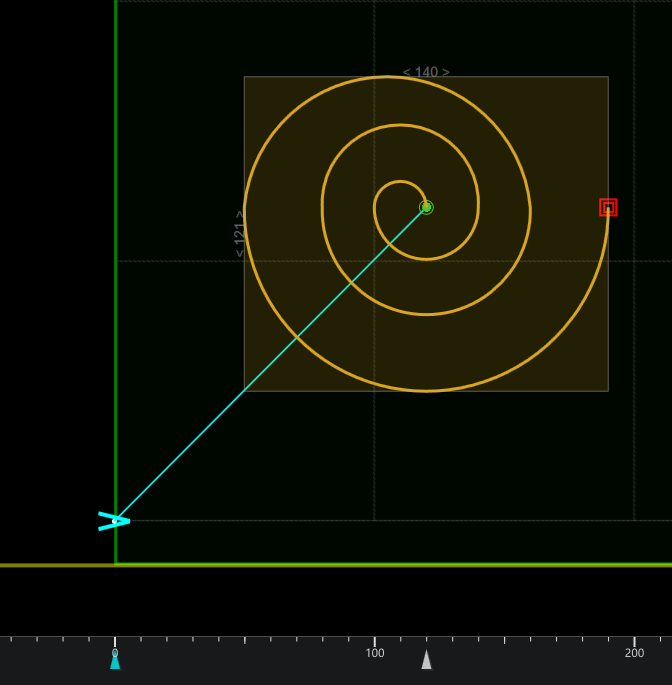

    Does anyone have an idea how to run such a spiral on CNC smoothly without stops? SMC_SmoothPath and SMC_RoundPath don’t help. In general according to the documentation they should work on arcs but in the example only straight lines are shown and I get the impression these functions only work for straight lines.

    N005 G51 D15
N010 G01 X120.00 Y120.72 F100
N020 G03 X110.00 Y130.72 I-10.00 J0.00 F100
N030 G03 X100.00 Y120.72 I0.00 J-10.00 F100
N040 G03 X140.00 Y120.72 I20.00 J0.00 F100
N050 G01 X140.00 Y120.72 F100
N060 G03 X80.00 Y120.72 I-30.00 J1.67 F100
N070 G01 X80.00 Y120.72 F100
N080 G03 X160.00 Y120.72 I40.00 J-1.25 F100
N090 G01 X160.00 Y120.72 F100
N100 G03 X50.00 Y120.72 I-55.00 J-5.00 F100
N110 G01 X50.00 Y120.72 F100
N120 G03 X190.00 Y120.72 I70.00 J-0.71 F100
N125 G50
N130 M30

    Thumbnail

  • gseidel - 2025-09-24

    Hi blitz,

    the G1 sentences N50, N70, and N110, which have length 0, lead to a stop of interpolation between the arcs. If you remove these lines, SMC_SmoothPath works (I tried it).

    Bst regards,

    Georg



  • blitz - 2025-09-24

    Thank you very much @gseidel ! :)
